SQUARE

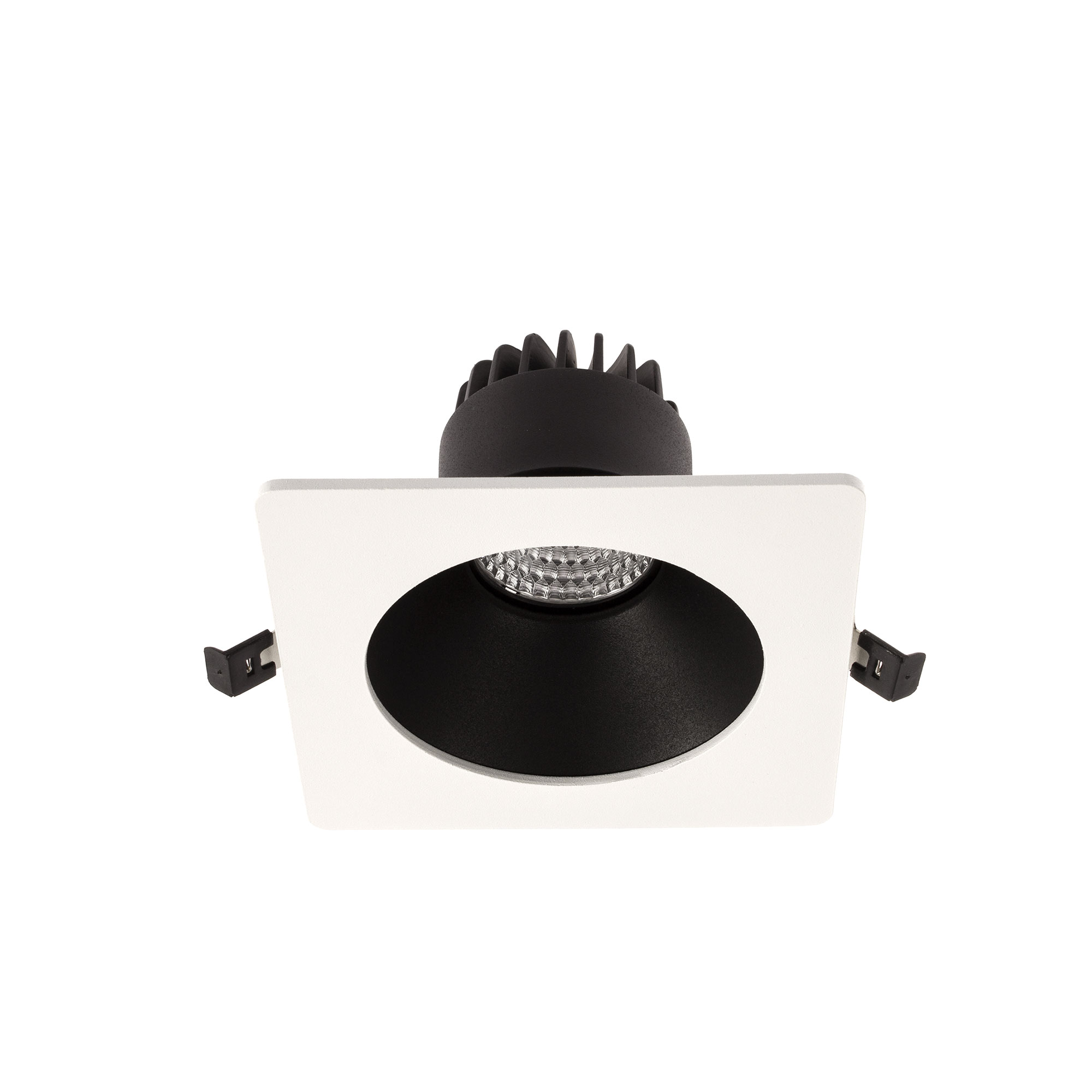

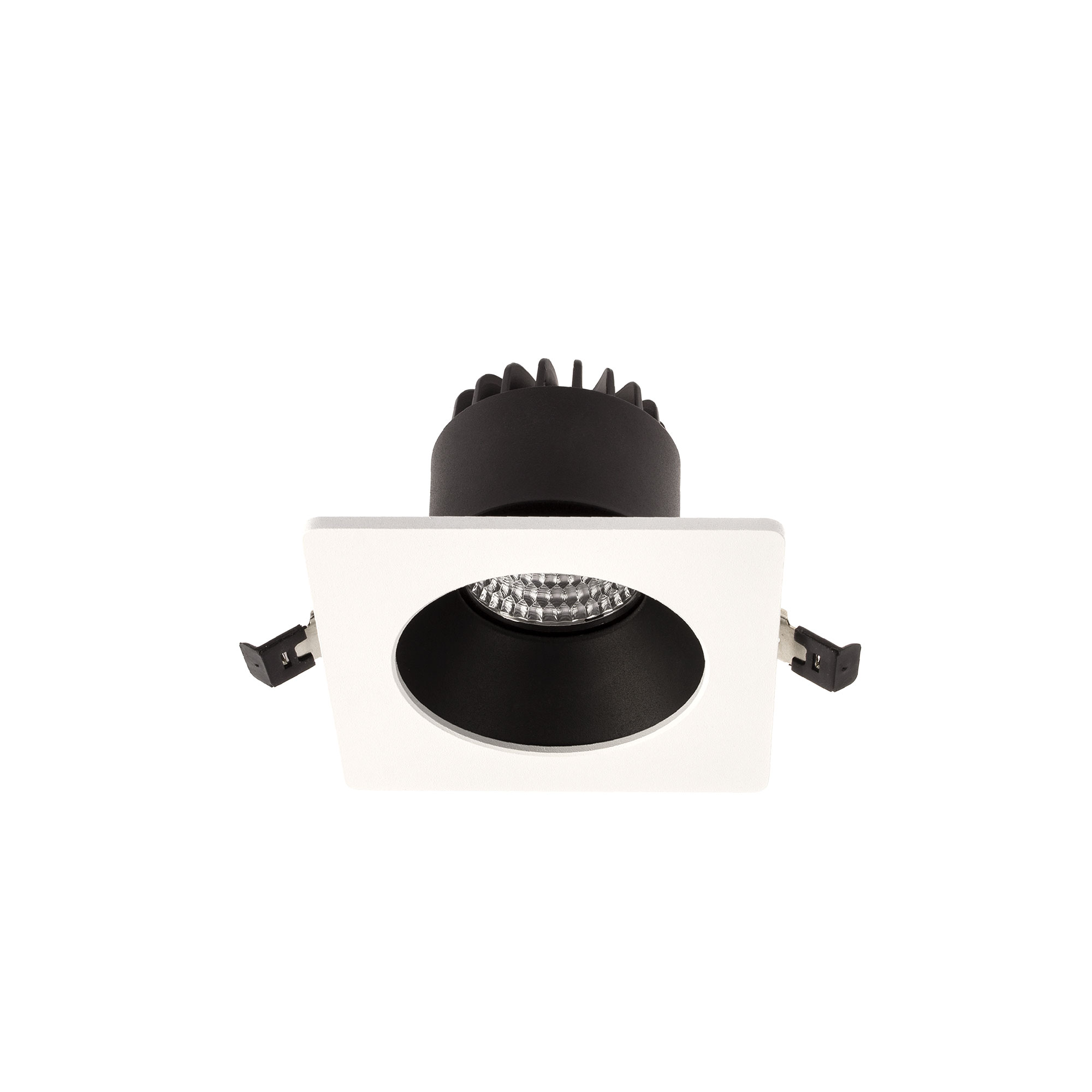

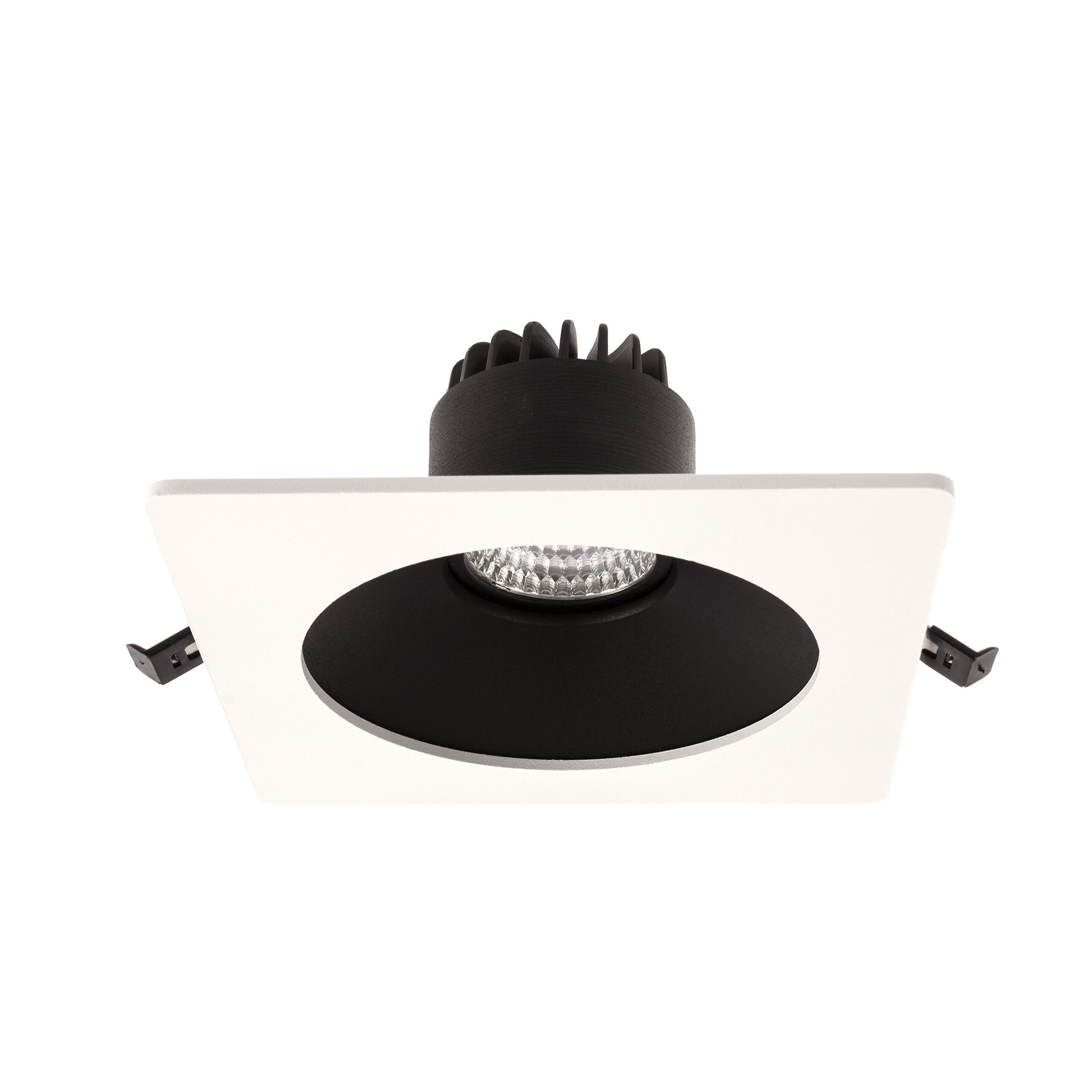

SQUARE combines the advantages of high performance LED technology, energy saving, optical quality and visual comfort. It is a solution-oriented spotlight with four different sizes. Thanks to its deeply positioned LED source, it provides a clear light output and provides eye-friendly lighting. Available in various body and reflector colors, SQUARE enables various combinations for the user.
-
Product Description
-
Technicial Specifications
-
Download Center
SQUARE combines the advantages of high performance LED technology, energy saving, optical quality and visual comfort. It is a solution-oriented spotlight with four different sizes. Thanks to its deeply positioned LED source, it provides a clear light output and provides eye-friendly lighting.
| Housing | Aluminium injection Housing |
| Optical | Reflector |
| Optical Angles | 24° / 36° / 60° |
| IP Protection Class | IP20 |
| IK Impact Resistance Class | IK03 |
| Input Voltage | 220-240V AC 50/60 Hz |
| Consumption Power | 6 W / 8 W / 10 W / 12 W / 15 W / 20 W |
| Source of light | COB LED |
| Color Temperature | 2700K / 3000K / 4000K / 6500K |
| CRI | >80 / >90 |
| Working Ambient Temperature | -5 °C / +35 °C |
| Body Colors | RAL 9005 / RAL 9006 / RAL 9016 |
| Mounting Type | Plasterboard |
