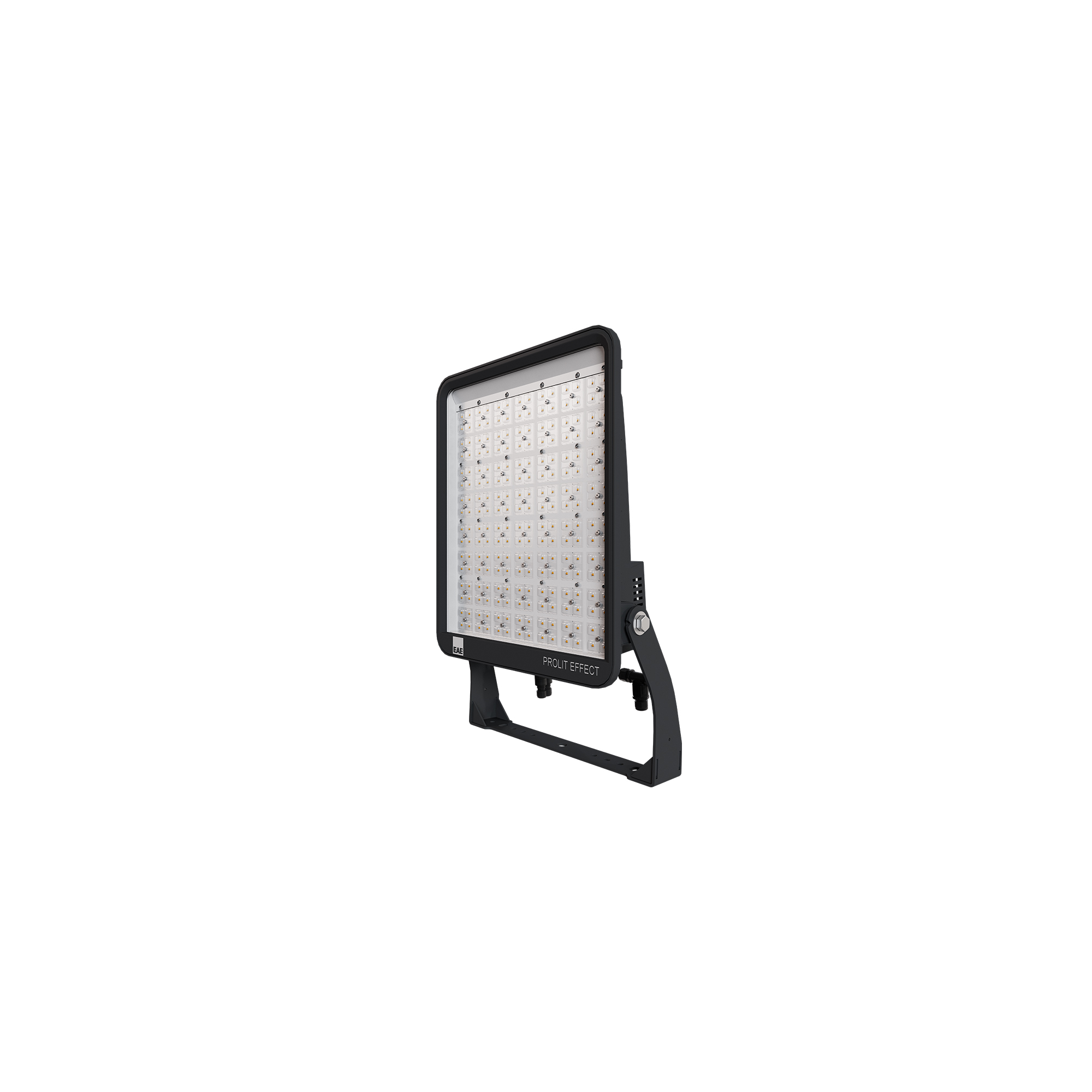

PROLIT EFFECT MIDPOWER NG
Flexible Optics for High Power Area Lighting
PROLIT Effect Mid Power NG delivers controlled and efficient lighting for shipyards, ports and large industrial areas with a wide power and lumen range.
-
Product Description
-
Technicial Specifications
-
Download Center
-
Datasheets
PROLIT Effect Mid Power NG is designed for large area lighting applications with power options between 470 W and 765 W and luminous flux ranging from 68,900 lm to 100,000 lm. Multiple beam angle alternatives allow precise light distribution according to project requirements.
With beam angles of 18°, 23°, 30°, 46°, 60°, 90° and asymmetric optics, it provides effective illumination for shipyards, ports, shipbuilding areas and aircraft hangars. The 0 tilt option enables direct orientation of the luminaire towards specific zones.
Thanks to its IP66 and IK09 protection ratings, the luminaire is resistant to harsh environmental conditions. Its CE compliant structure ensures reliable and long lasting performance in industrial and outdoor applications.
| Housing | Aluminium injection housing |
| Diffuser | Tempered glass with serigraphy |
| Optic Angles | 18° lens / 23° lens / 30° lens / 46° lens / 60° lens / 90° lens / Asymmetric lens / 0 Tilt |
| IP Grade | IP66 |
| IK Impact Resistance Class | IK09 |
| Input Voltage | 220-240 V AC |
| Power | 470 W / 555 W / 655 W / 665 W / 765 W |
| Light Source | MidPower LED |
| Color Temperature | 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | >70 |
| Operating Tempareture Range | -40 °C/+65 °C |
| Housing Colors | ALZ90F+MW 3004 (BLACK) |
| Installation | Floor Mounted |
