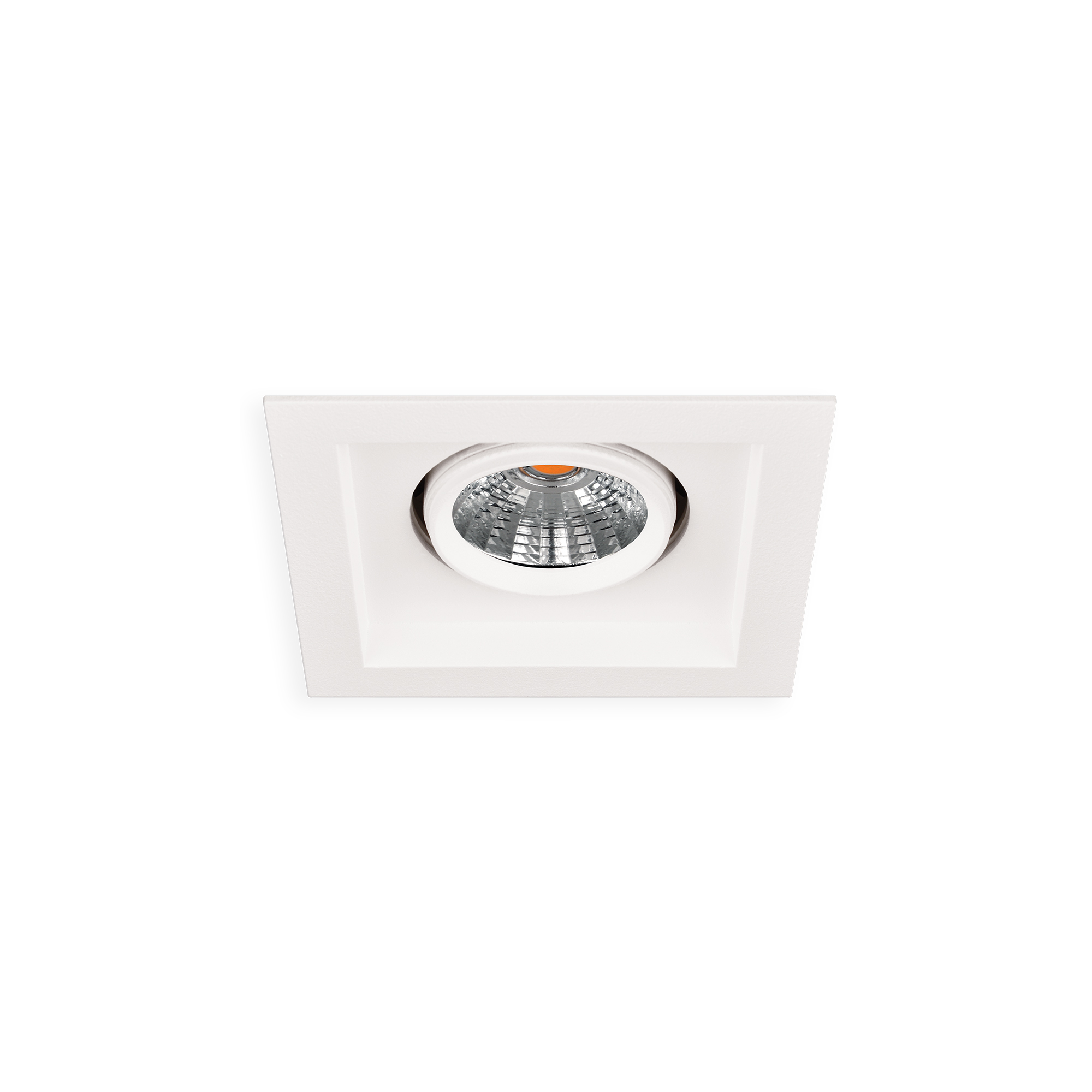

PLANO is available in single and double body options. It offers maximum performance with its optical diversity and wide lumen range. Thanks to its biaxial steerable spot mechanism feature; it is ideal for areas where spot lighting is needed such as offices, stores, showrooms and retail.
Housing | Aluminium Housing |
Optical System | Reflector |
Optical Angles | 15°/ 30° |
Optical Cover | Transparent Diffuser |
IP Protection Class | IP20 |
IK Impact Resistance Class | IK03 |
Input Voltage | 220-240V AC 50/60 Hz |
Consumption Power | 5 W / 8 W / 10 W |
Lumen Value | 496 lm / 794 lm / 992 lm |
Source of light | COB LED |
Color Temperature | 2700K / 3000K / 4000K / 6500K |
CRI | >80 / >90 |
Working Ambient Temperature | -5 °C / +35 °C |
Body Colors | RAL 9005 / RAL 9006 / RAL 9016 |

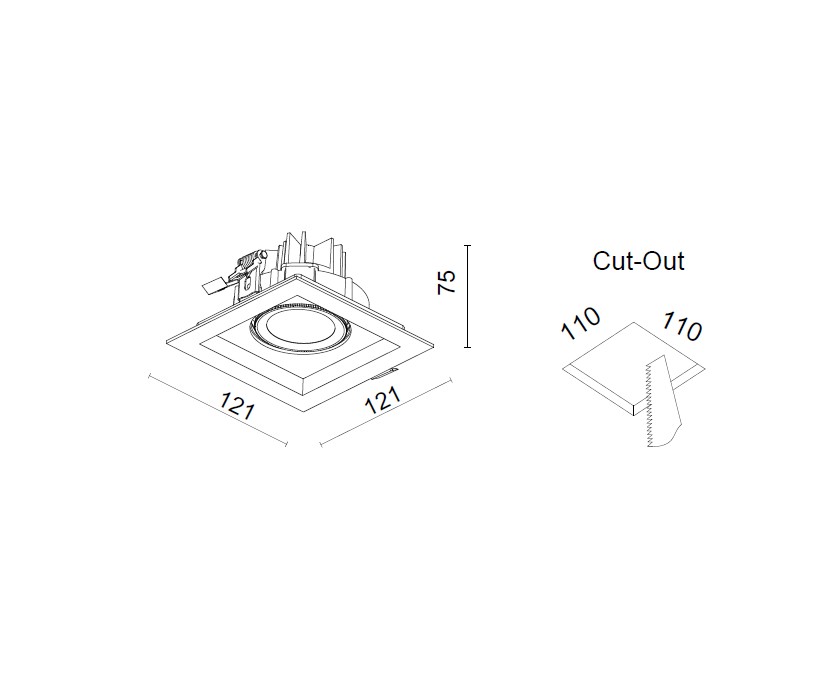

Mounting Type | Plasterboard |
