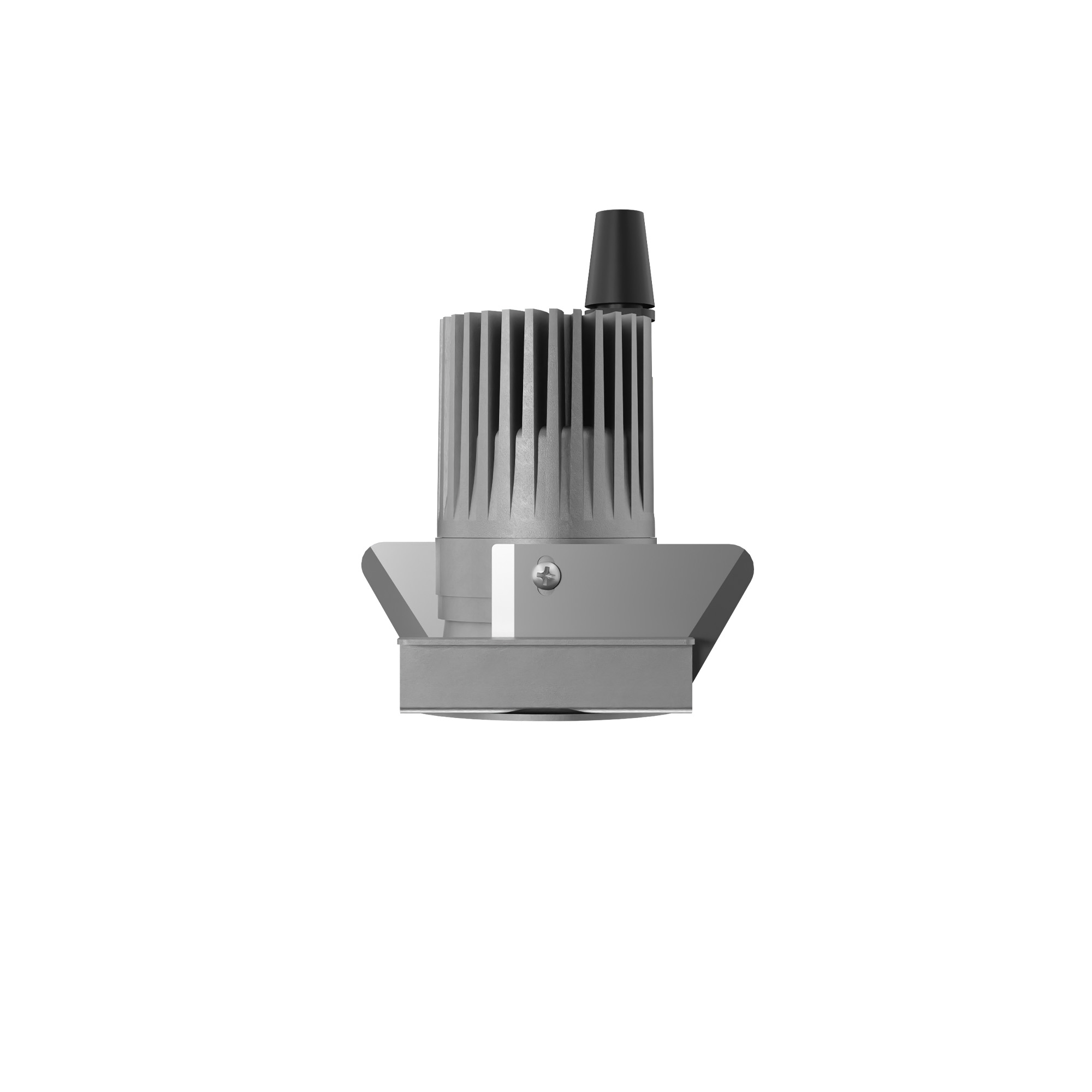

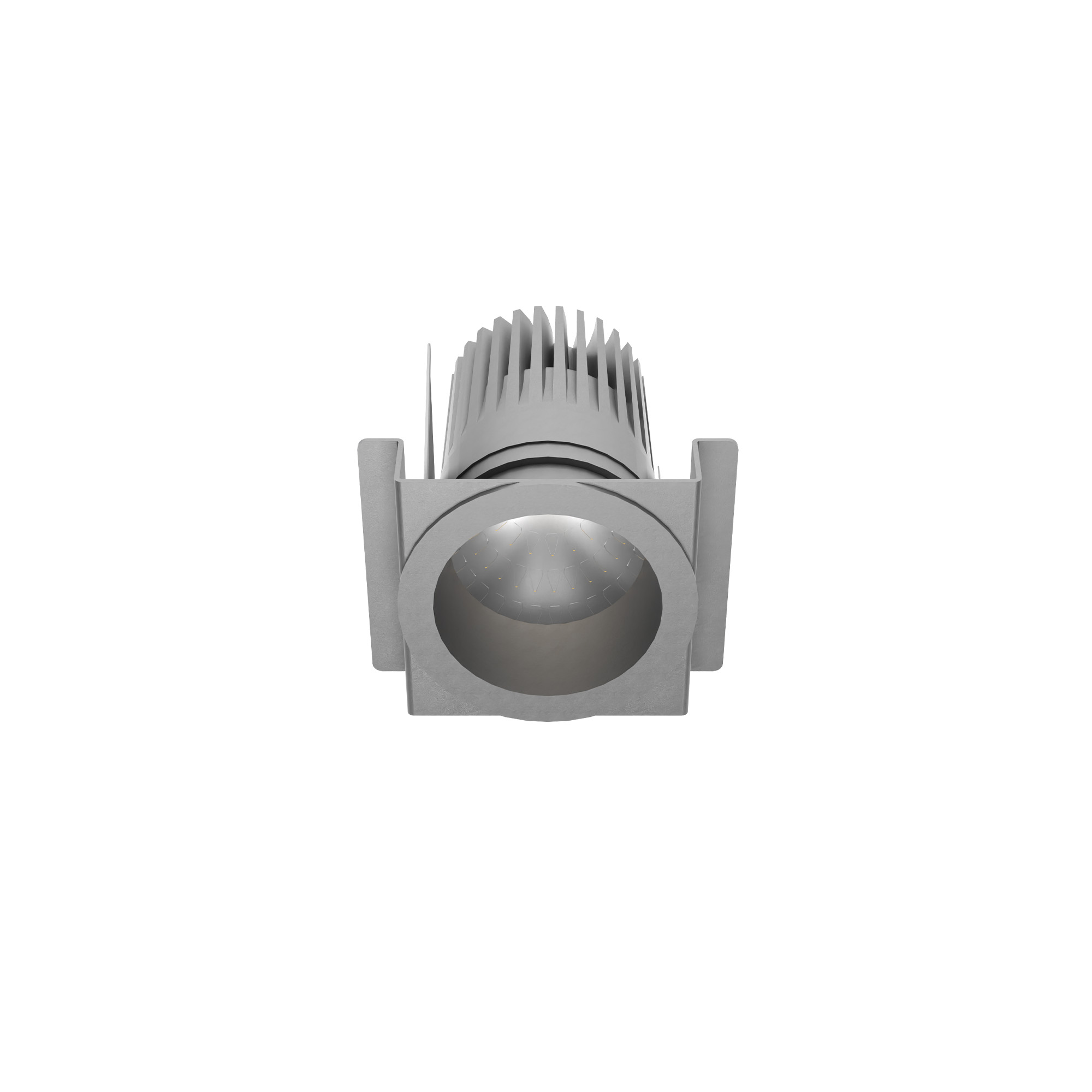

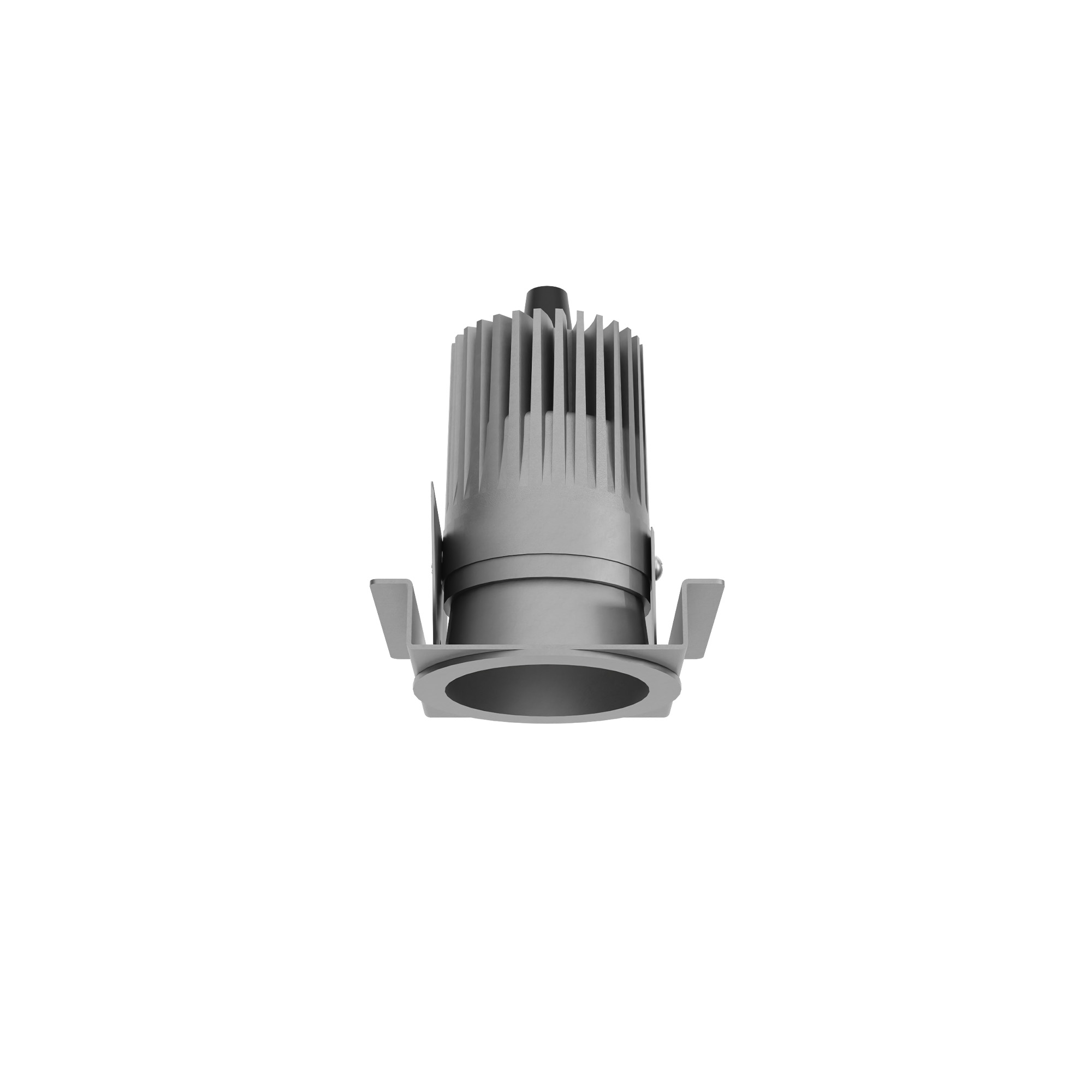

ORI MESH SMALL

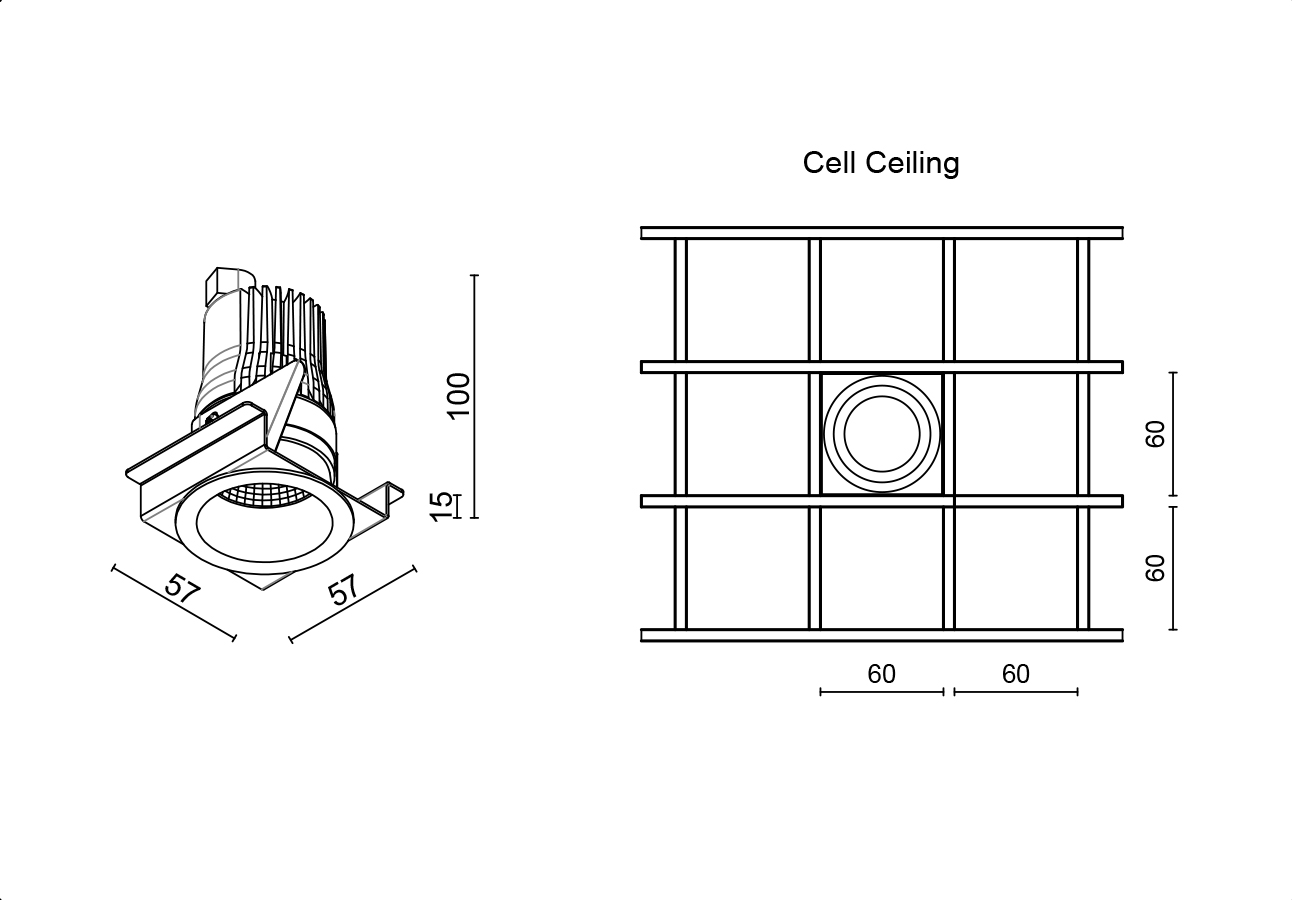

ORI SMALL MESH has a structure that does not create glare due to its 58mm diameter, micro-sized and deeply positioned light source. In addition to being easily integrated into open ceiling cells; Thanks to its high light efficiency, it provides significant savings compared to classical lighting.
-
Product Description
-
Technicial Specifications
-
Download Center
ORI SMALL MESH has a structure that does not create glare due to its 58mm diameter, micro-sized and deeply positioned light source. In addition to being easily integrated into open ceiling cells; Thanks to its high light efficiency, it provides significant savings compared to classical lighting.
| Housing | Aluminium Injection Housing |
| Optical System | Reflector |
| Optical Angles | 24° / 36° |
| IP Protection Class | IP20 |
| IK Impact Resistance Class | IK03 |
| Input Voltage | 220-240V AC 50/60 Hz |
| Consumption Power | 6 W / 8 W / 10 W / 12 W / 14W |
| Lumen Value | 627 lm / 797 lm / 954 lm / 1108 lm / 1370 lm |
| Source of light | COB LED |
| Color Temperature | 2700K / 3000K / 4000K / 6500K |
| CRI | >80 |
| Working Ambient Temperature | -5 °C / +35 °C |
| Body Colors | RAL 9016 White / RAL 9005 Black |
| Mounting Type | Mesh Ceiling |
