LINEX EXPROOF

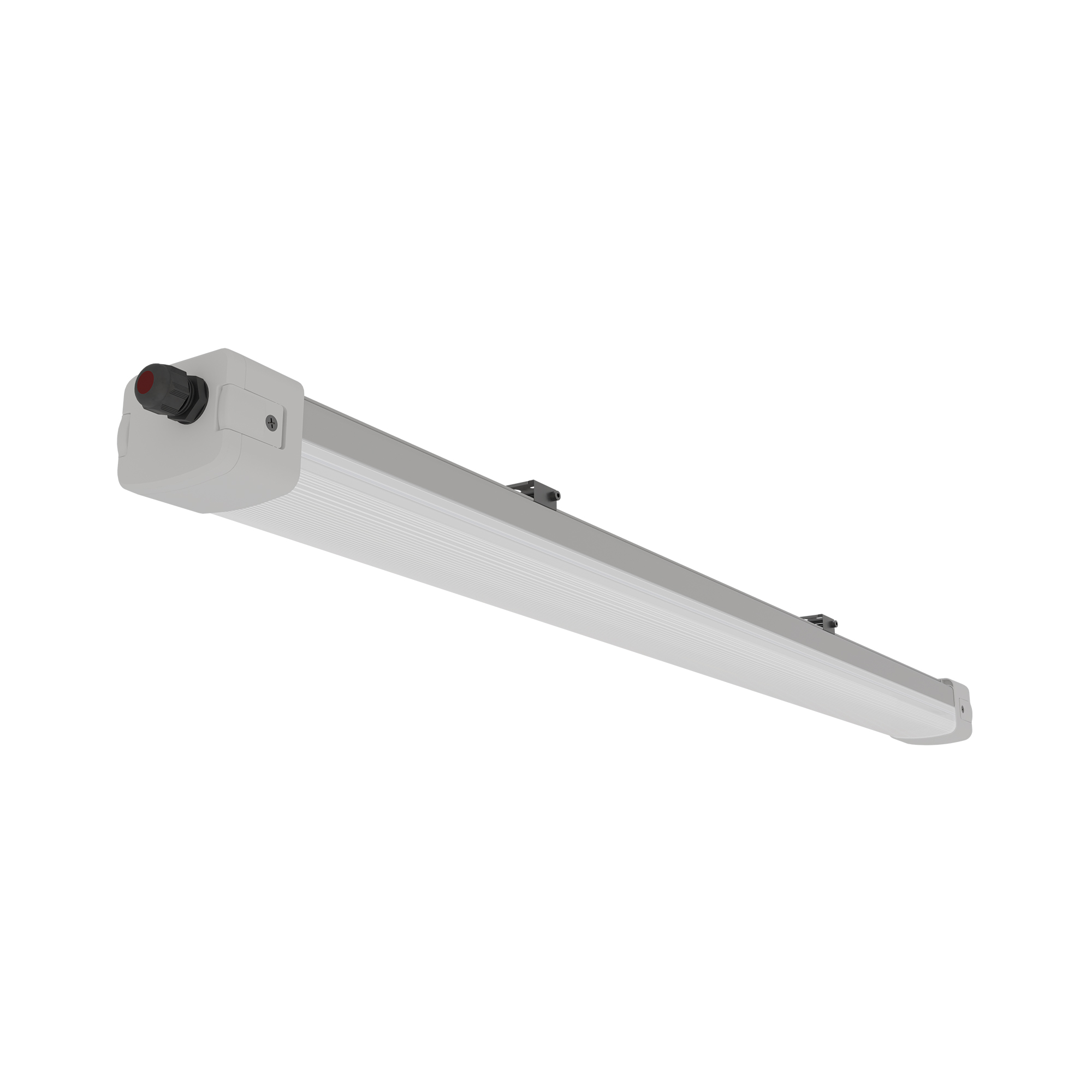

Linex luminaire is a reliable solution partner designed to operate in Zone 2 / Zone 21 areas with flammable and explosive gases and dust. With its aluminum extrusion body and IP66 class, it is a long-lasting luminaire that can be used indoors and outdoors. With various body size and power output options, it responds to all different lighting needs.
-
Product Description
-
Technicial Specifications
-
Download Center
-
Datasheets
Meet Linex, the reliable solution partner for Zone 2 / Zone 21 areas with flammable and explosive gases and dusts.
| Housing | Aluminium extrusion housing |
| Diffuser | Opal Diffuser |
| Optic Angles | Wide Angle |
| IP Grade | IP66 |
| IK Impact Resistance Class | IK07 |
| Input Voltage | 220-240V AC 50/60 Hz |
| Power | 25 W / 30 W / 34 W / 40 W / 56 W / 64 W / 73 W / 79 W |
| Light Source | Mid Power LED |
| Color Temperature | 2700K, 3000K, 4000K, 5000K, 5700K, 6500K |
| CRI | >80 |
| Operating Tempareture Range | 0 °C / +65 °C |
| Housing Colors | RAL 9016 |
| Installation | Surface mounted |
| Exproof Application Class | Zone 2 / Zone 21 |
| Equipment Category | 3G / 2D |
| Hardware Protection Level | Gc/Db |
| Explosion Group | IIC / IIIC |
| Temperature Class | T6 |
| Type of Protection | ec / tb |
