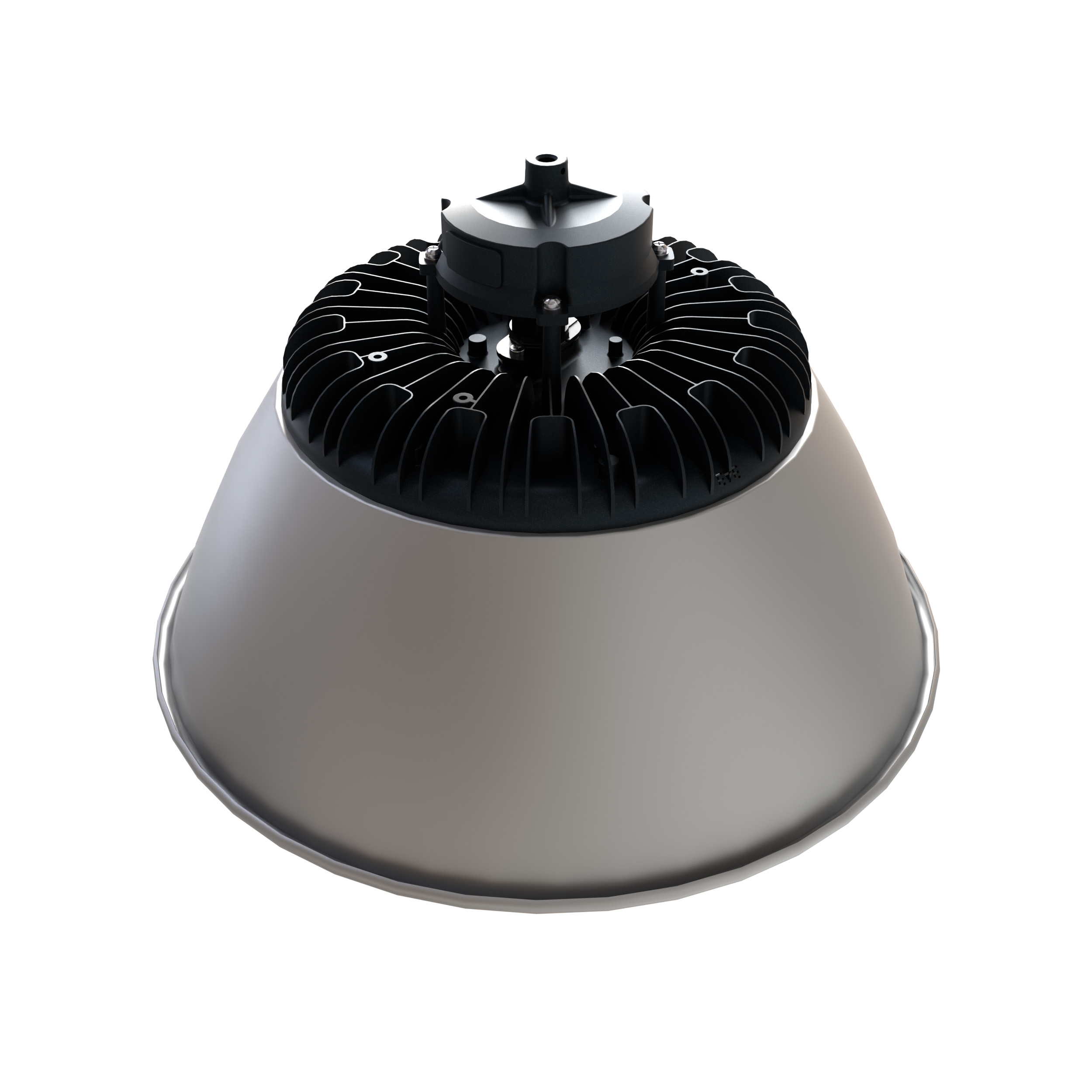

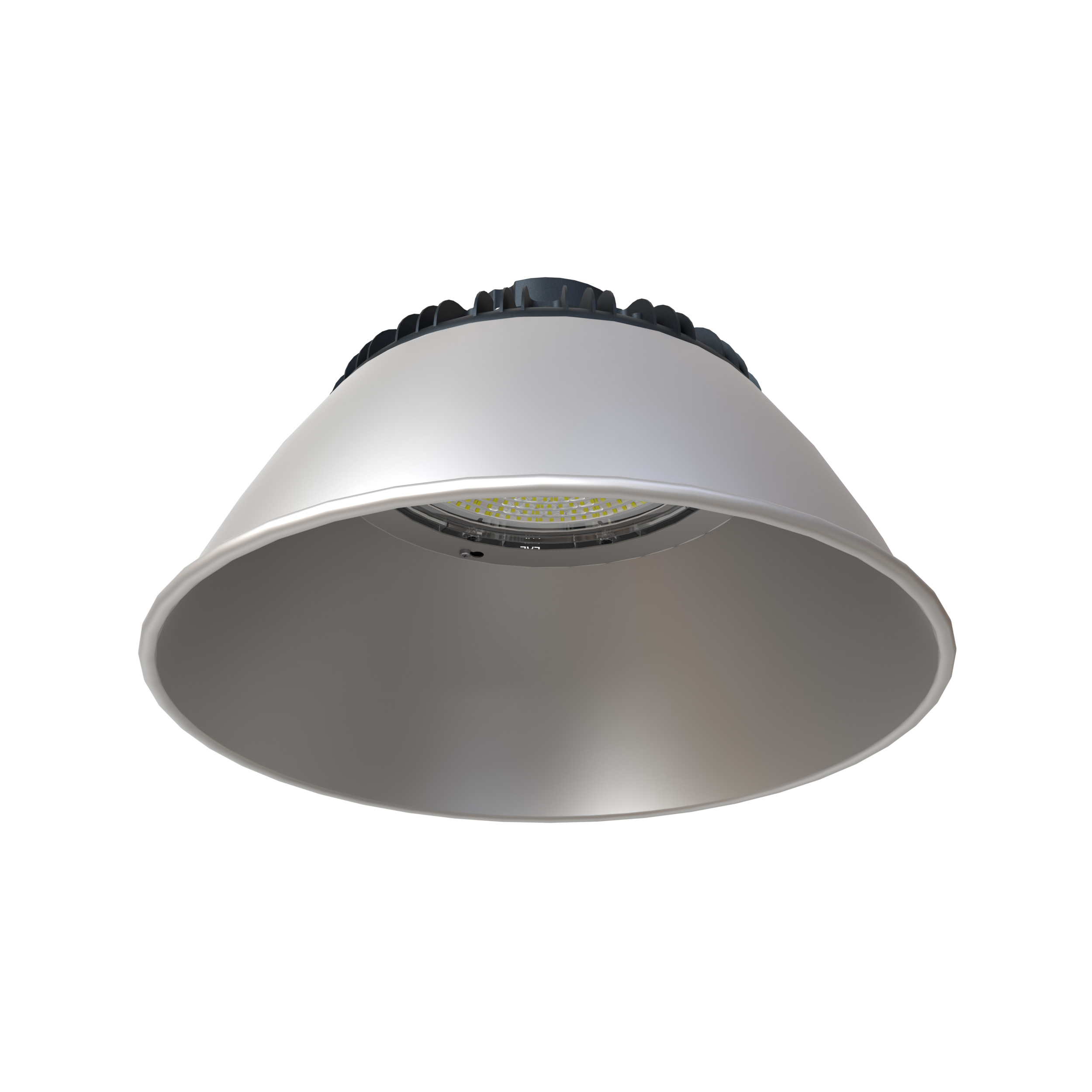

HBL UGR V6

Higher Efficiency for Stronger Illumination

HBL UGR V6 offers different power options in a single luminaire with its special driver developed for high-ceiling areas. This structure, which easily adapts to lighting requirements, provides efficient and practical use in projects.

With its low UGR value, HBL UGR V6 reduces glare and enhances visual comfort, creating more comfortable and safer working environments. Thanks to its durable design and high lighting performance, it is an ideal solution for industrial facilities, warehouses, production areas and sports halls.

  • Product Description

  • Technicial Specifications

  • Download Center

  • Datasheets

HBL UGR V6 is an advanced high bay luminaire that delivers stronger illumination with lower energy consumption thanks to its high efficiency. It is optimized for continuous and stable lighting in industrial facilities, warehouses and production areas.

Its die-cast aluminum housing offers a lightweight and durable structure, while the PC optical system provides homogeneous light distribution. With its low UGR value, it helps prevent glare and ensures comfortable, distraction-free illumination.

With 60° and 90° optical options, it adapts to different ceiling heights. The 109 W, 144 W and 178 W power options, wide color temperature range from 2700K to 6500K, and CRI value above 80 provide both high performance and accurate color rendering.

With IP65 protection class and IK08 impact resistance, HBL UGR V6 operates reliably in demanding industrial environments. Surface-mounted or pendant mounting options enable easy installation, while CE, ENEC and CB certifications confirm compliance with international safety standards.

Housing Aluminum injection housing
Diffuser PC
Optic Angles 60° / 90°
IP Grade IP65
IK Impact Resistance Class IK08
Input Voltage 220-240V AC
Power 139W / 186W / 235W
Light Source Mid Power LED
Color Temperature 2700 K / 3000K / 4000K / 5000K / 5700K / 6500K
CRI >80
Operating Tempareture Range -20 °C/+45 °C
Housing Colors RAL 7022
Installation Surface Mounted / Pendant
