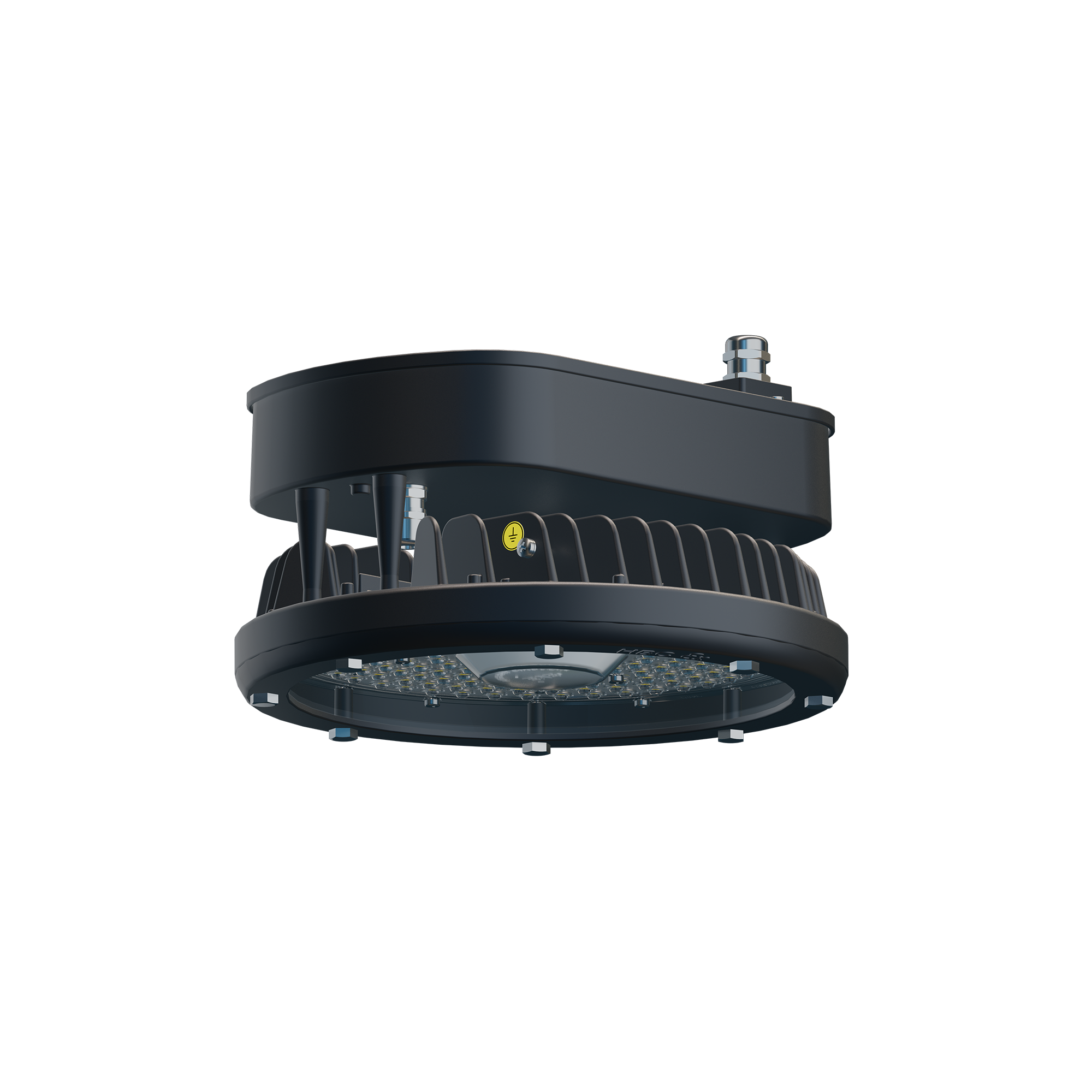

HBC EX-PROOF ZONE-2
Offeres as the best LED illumination solution in environments with explosion and fire risk, HBC EXPROOF ZONE-2 was designed for Ex-Proof, Zone 2/22 illumination with its advanced mechanical qualities. It guaranties a long service life with its durable housing in IP66 class and impact resistance. Offers the optimum solution for environments ranging from -30°C to +55°C.
-
Product Description
-
Technicial Specifications
-
Download Center
Offeres as the best LED illumination solution in environments with explosion and fire risk, HBC EXPROOF ZONE-2 was designed for Ex-Proof, Zone 2/22 illumination with its advanced mechanical qualities. It guaranties a long service life with its durable housing in IP66 class and impact resistance. Offers the optimum solution for environments ranging from -30°C to +55°C.
| Housing | Aluminium Injection |
| Diffusuer | - |
| Optik Angles | 50° / 55° / 80° / 90° |
| IP Grade | IP66 |
| IK Impact Resistance | IK10 |
| Input Voltage | 220-240V AC 50/60 Hz |
| Power | Mid Power LED |
| Light Source | 2700K / 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | >80 |
| Operating Tempature Range | -30 °C/+55 °C |
| Housing Colors | SW 306G |
| Classification of Hazardous Location | Zone 2 / 21 |
| Equipment Category | 3G / 2D |
| Equipment Protection Level | Gc / Db |
| Explosion Group | IIC / IIIC |
| Temperature Class | T5, T6 |
| Protection Type | nr / tb |
| Installation | Surface Mounted |
