GARLED MEGA HE
Powerful and Efficient Lighting for High Ceilings

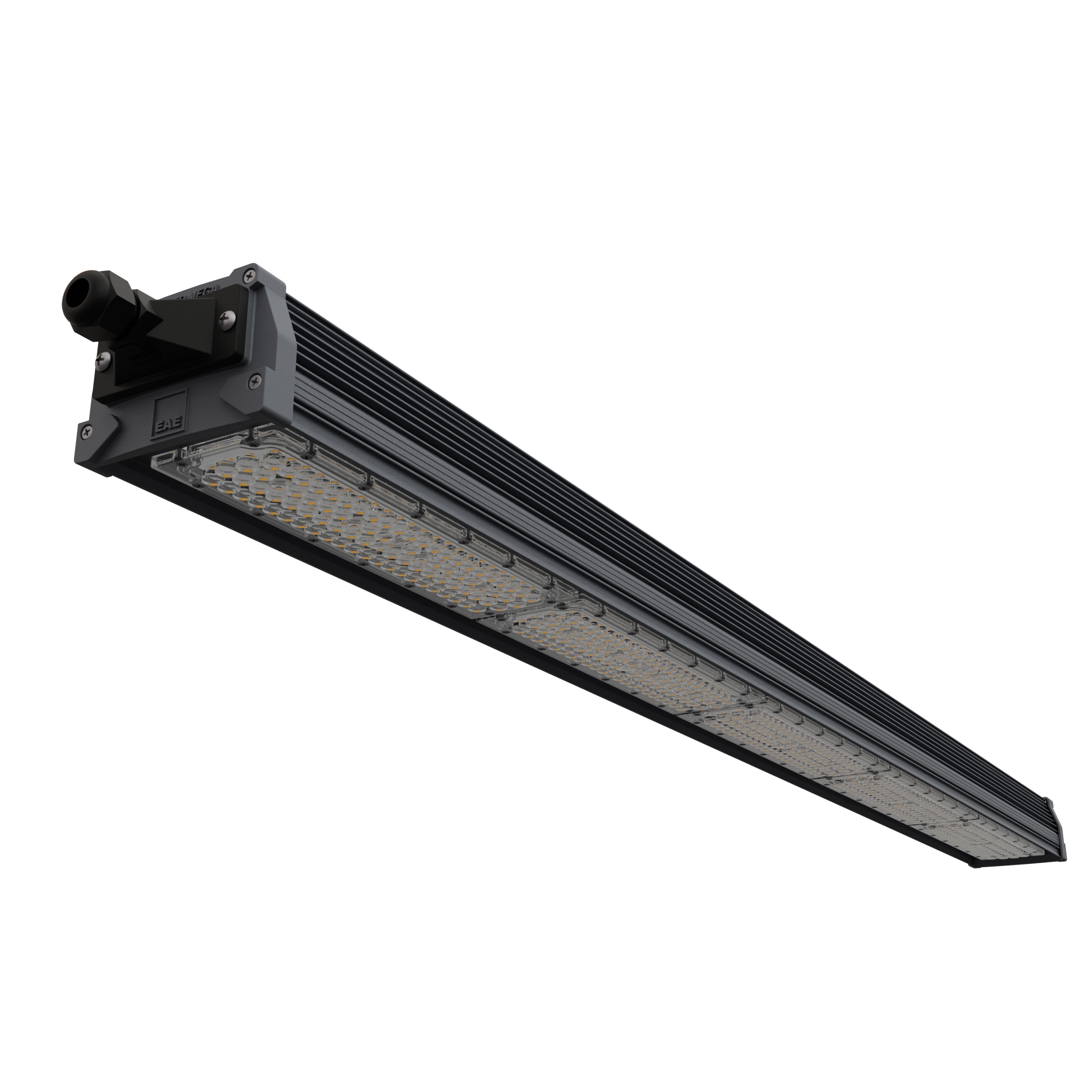

GARLED MEGA HE is a high-efficiency LED high bay luminaire designed for industrial facilities and large indoor spaces.
-
Product Description
-
Technicial Specifications
-
Download Center
-
Datasheets
GARLED MEGA HE is a high bay lighting luminaire featuring an aluminum extrusion body. Its optical lens system with selectable beam angles (30-70°, 60°, 90°) provides uniform illumination across wide areas. With an IP65 protection rating, the luminaire is resistant to dust and water, making it suitable for demanding industrial environments.
Equipped with Mid Power LED light sources, GARLED MEGA HE offers high efficiency and long service life. Available in power options from 30 W to 115 W, it adapts to a range of lighting needs. Color temperatures from 2700 K to 6500 K and a CRI >80 ensure good color rendering. The operating temperature range is –20°C to +50°C. Surface-mounted installation simplifies application.
GARLED MEGA HE is ideal for industrial facilities, warehouses, production lines, and other high-ceiling indoor spaces requiring robust and efficient illumination.
| Housing | Aluminium extrusion housing |
| Diffuser | Lens |
| Optic Angles | 30-70° / 60° / 90° |
| IP Grade | IP65 |
| IK Impact Resistance Class | IK09 |
| Input Voltage | 220-240V AC |
| Light Source | Mid Power LED |
| Power | 30 W / 45 W / 60 W / 85 W / 95 W / 115 W |
| Light Source | Mid Power LED |
| Color Temperature | 2700 K / 3000 K / 4000 K / 5000 K / 5700 K / 6500 K |
| CRI | >80 |
| Operating Tempareture Range | -20 °C/+50 °C |
| Housing Colors | SW 306G |
| Installation | Surface mounted |
