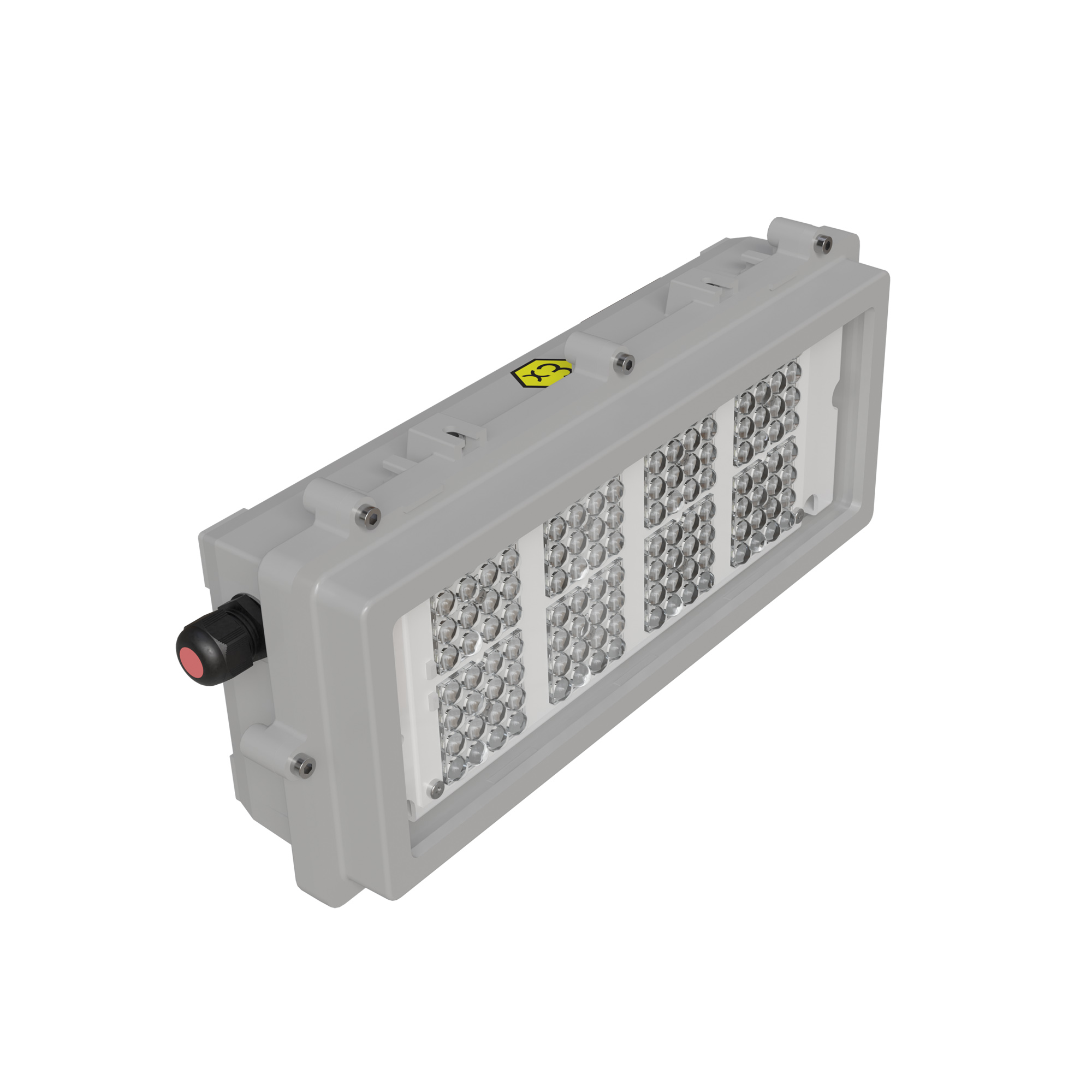

Engineered for durability, ExDual Zone 2/21 features a GRP body and tempered clear glass diffuser that resist corrosion, UV exposure, and aggressive chemicals. Certified for Zone 2/21 with 3G/2D equipment category and Gc/Db protection level, it's ideal for hazardous gas and dust areas. Its wide beam angle range (18°–90°) offers tailored lighting for diverse installations. Optional cable glands in plastic, nickel-plated brass, or AIS 316 stainless steel ensure adaptability. Compatible with multiple mounting systems—graded, pipe, elevator, or cable tray—it can even function as an exit sign. The DALI-compatible emergency kit allows remote battery monitoring, making ExDual a complete smart lighting solution for critical environments.
| Housing | GRP Housing |
| Diffusuer | Transparent glass |
| Optik Angles | 18° / 23° / 30° / 46° / 60° / 90° |
| IP Grade | IP66 |
| IK Impact Resistance | IK08 |
| Input Voltage | 220-240V AC 50/60 Hz |
| Power | 26W / 33W / 42W |
| Light Source | Mid Power LED |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | >80 |
| Operating Tempature Range | -20 °C/+55 °C |
| Housing Colors | RAL 7047 |
| Exproof Application Class | Zone 2 / 21 |
| Equipment Category | 3G / 2D |
| Equipment Protection Level | Gc / Db |
| Explosion Group | IIC / IIIC |
| Temperature Class | T6 |
| Protection Type | nr / tb |
| Installation | Pendant |
