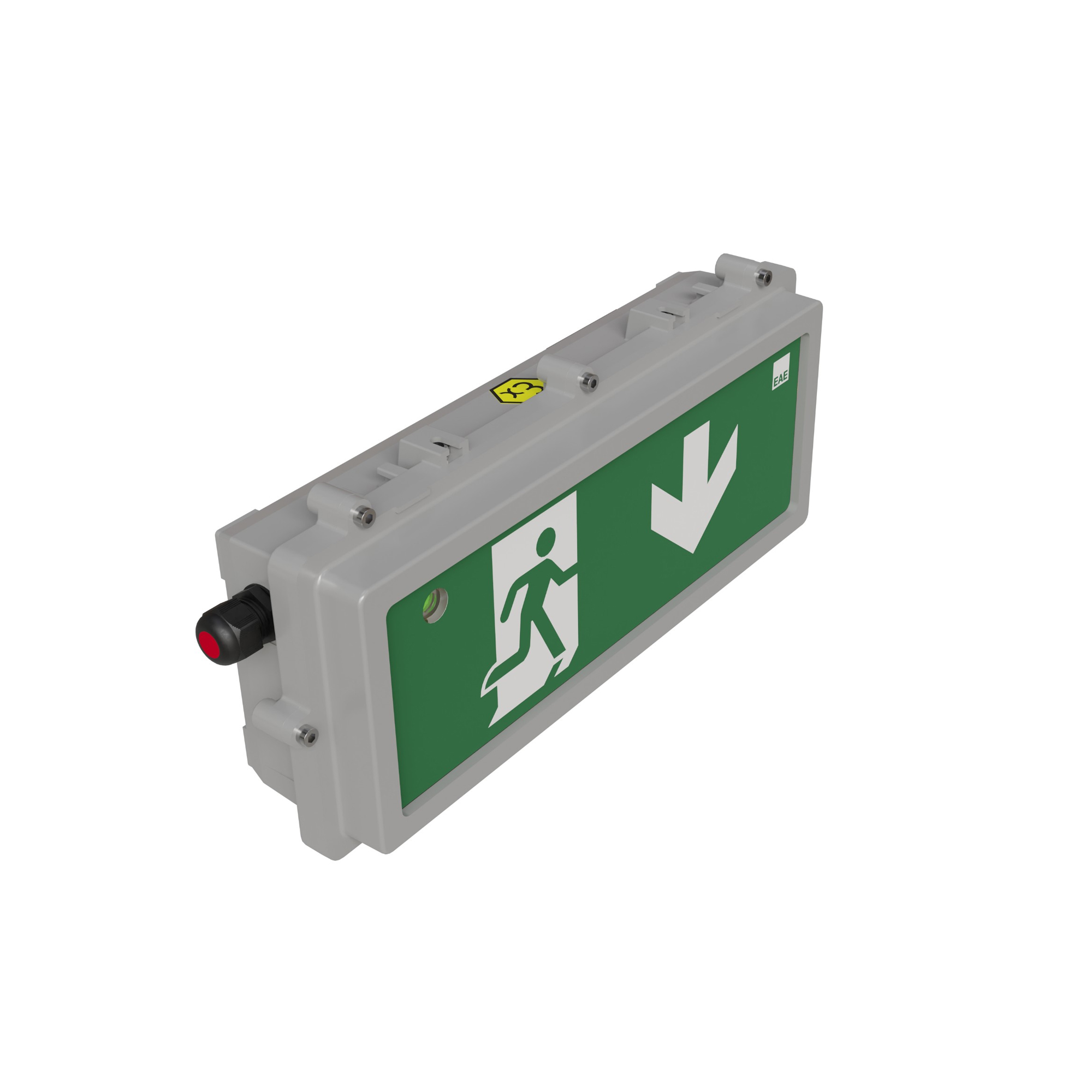

EX-DUAL EXIT ZONE 2.21
Reliable Direction in Hazardous Moments
ExDual Exit is an Ex-proof emergency exit luminaire built for safe evacuation in explosive, chemical, and corrosive environments.
-
Product Description
-
Technicial Specifications
-
Download Center
Designed for use in Zone 2 and Zone 21 hazardous areas, ExDual Exit is a flameproof emergency exit sign luminaire compliant with EN 60598-2-22. It ensures reliable evacuation guidance even under explosion risk. The fixture offers IP66 protection, robust resistance to impact and temperature, and is fully suited for corrosive and chemically active facilities. Ideal for petrochemical sites, refineries, chemical plants, and other industrial environments with challenging atmospheric conditions.
| Housing | GRP Housing |
| Diffusuer | Transparent glass |
| Optik Angles | Wide Angle |
| IP Grade | IP66 |
| IK Impact Resistance | IK08 |
| Input Voltage | 220-240V AC 50/60 Hz |
| Power | 6W |
| Power | Mid Power LED |
| Light Source | 2700K / 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | >80 |
| Operating Tempature Range | 0 °C/+45 °C |
| Housing Colors | RAL 7047 |
| Classification of Hazardous Location | Zone 2 / 21 |
| Equipment Category | 3G / 2D |
| Equipment Protection Level | Gc / Db |
| Explosion Group | IIC / IIIC |
| Temperature Class | T6 |
| Protection Type | nr / tb |
| Installation | Pendant |
