DELTA YV 65/20
Divertible Light, Endless Combinations...

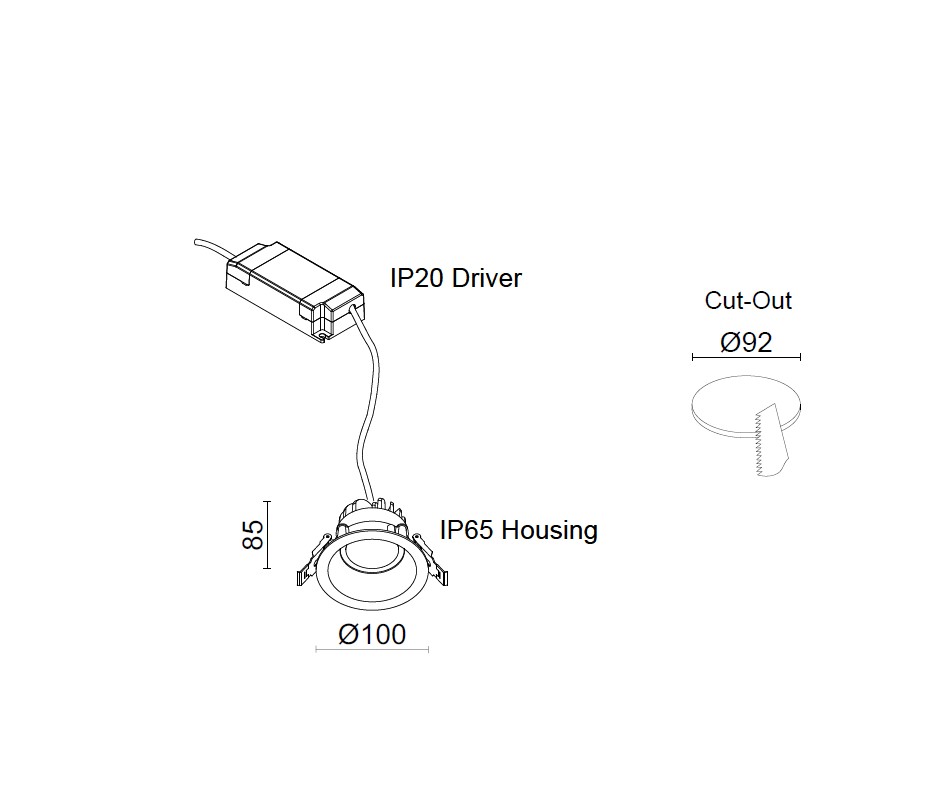

DELTA YV 65/20 has two different shapes, round and square. It provides flexibility to the user with narrow, medium and wide optical angles of 24° / 36° / 60°. TDELTA, which has lensed optics, captures clear light output.
-
Product Description
-
Technicial Specifications
-
Download Center
-
Datasheets
DELTA YV 65/20 has two different shapes, round and square. It provides flexibility to the user with narrow, medium and wide optical angles of 24° / 36° / 60°. DELTA, which has lensed optics, captures clear light output.
| Housing | Aluminium Injection Housing |
| Optical | Lens |
| Optical Angles | 24° / 36° / 60° |
| IP Protection Class (Housing) | IP65 |
| Input Voltage | 220-240V AC 50/60 Hz |
| Consumption Power | 8W / 10W / 15W / 20W |
| Source of Light | COB LED |
| Color Temperature | 2700K / 3000K / 4000K / 6500K |
| CRI | >80 / >90 |
| Working Ambient Temperature | -5 °C / +35 °C |
| Body Colors | RAL 9005 / RAL 9006 / RAL 7016 / RAL 9016 |
| Installation | Plasterboard |
