BLADE

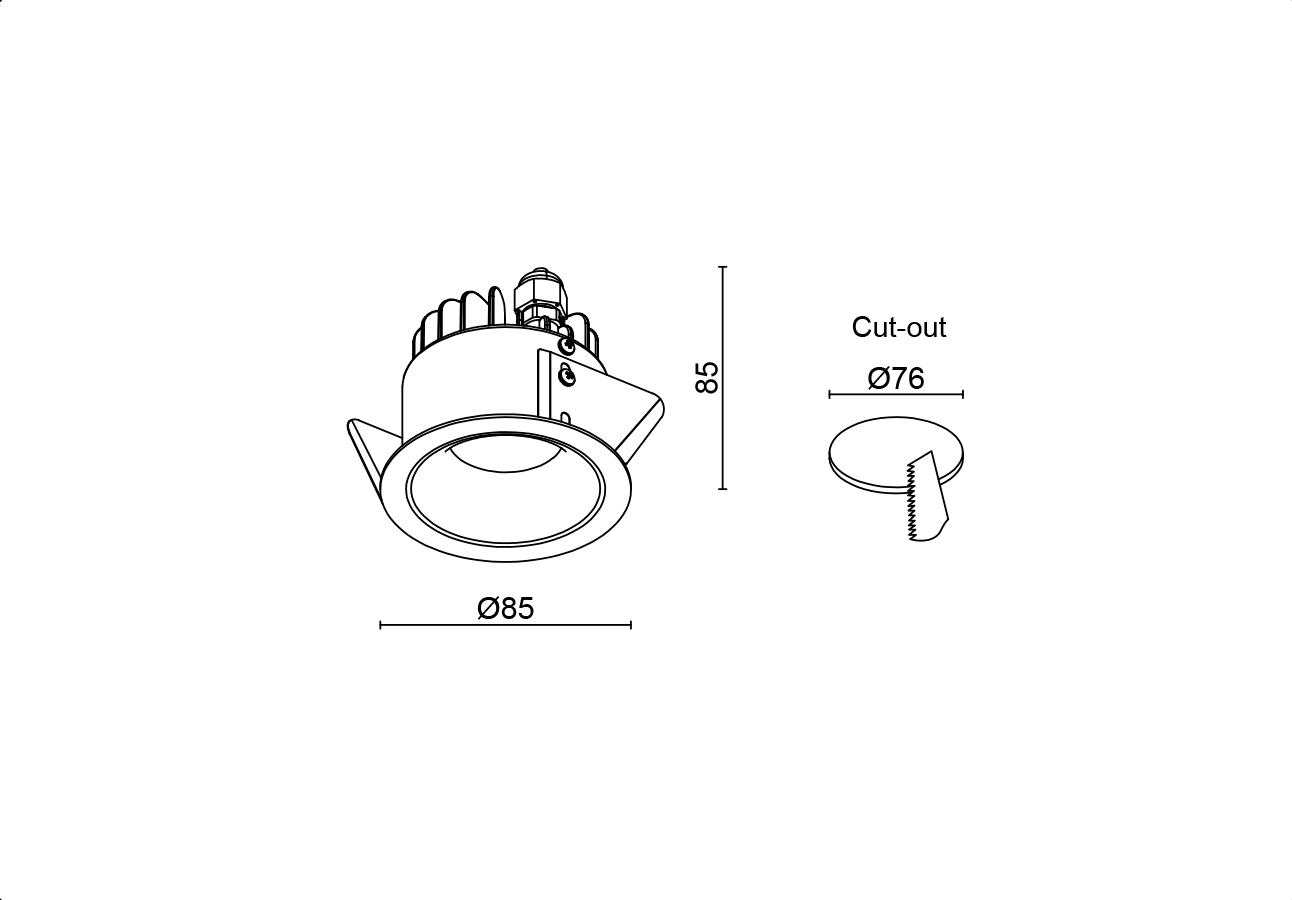

BLADE is suitable for use in narrow ceilings with a height of 8.5 cm. It has a symmetrical spot effect in terms of light character. Creating the effect of light filtering from the ceiling to the space, BLADE provides the highest level of visual comfort. It has narrow, medium and wide angle options of 24° / 36° / 60°.
-
Product Description
-
Technicial Specifications
-
Download Center
BLADE is suitable for use in narrow ceilings with a height of 8.5 cm. It has a symmetrical spot effect in terms of light character. Creating the effect of light filtering from the ceiling to the space, BLADE provides the highest level of visual comfort. It has narrow, medium and wide angle options of 24° / 36° / 60°.
| Housing | Aluminium Housing |
| Optical | 24° / 36° / 60° |
| IP Protection Class | IP20 |
| IK Impact Resistance Class | IK03 |
| Input Voltage | 220-240V AC 50/60 Hz |
| Consumption Power | 6 W / 8 W / 10 W / 12 W / 15 W / 20W |
| Source of Light | COB LED |
| Color Temperature | 2700K / 3000K / 4000K / 6500K |
| Power | COB LED |
| CRI | >80 / >90 |
| Working Ambient Temperature | -5 °C / +35 °C |
| Body Colors | RAL 9005 / RAL 9006 / RAL 9016 |
| Mounting Type | Plasterboard |
