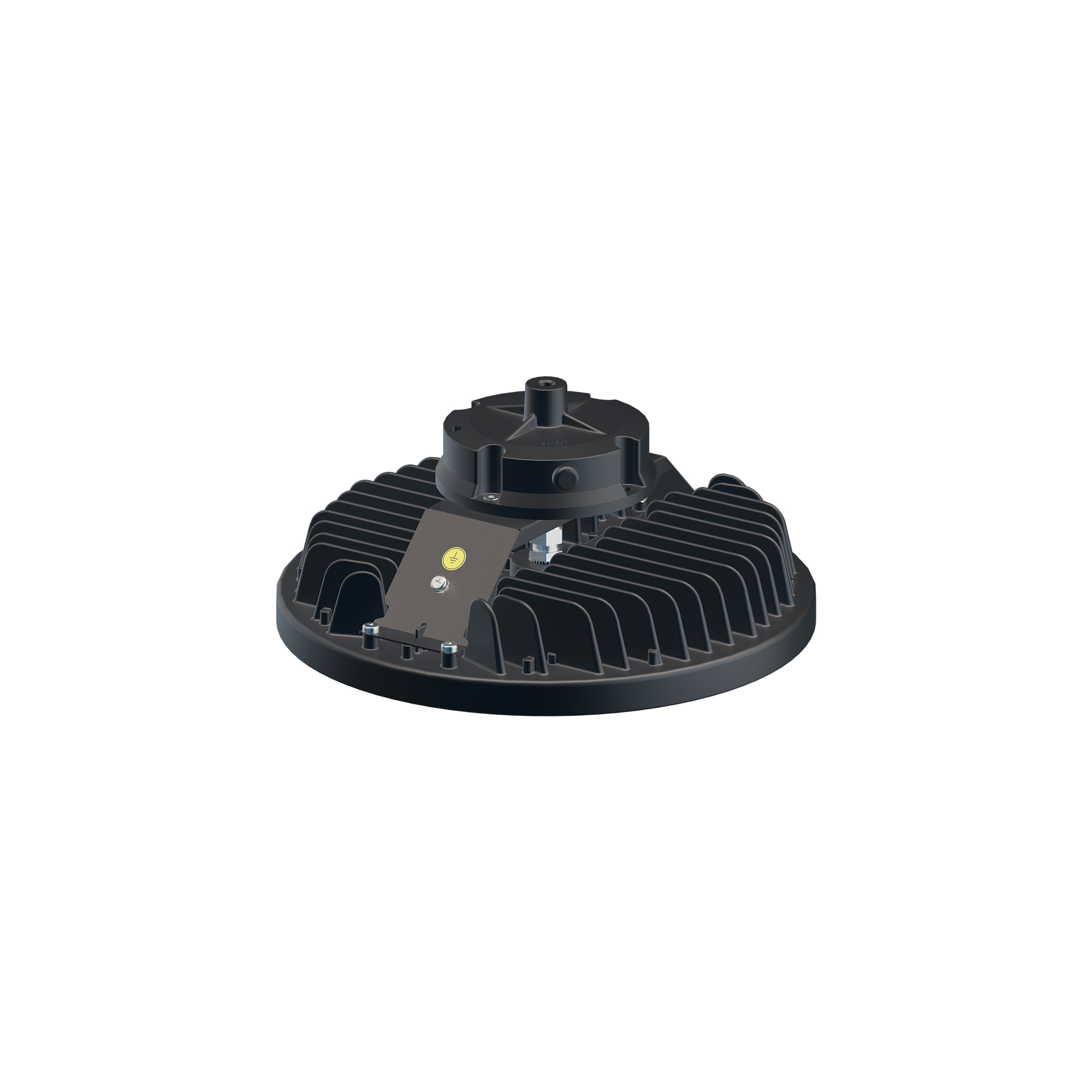

HBL IP65
With its minimized costs, HBL IP65 offers the economical and optimum LED illumination solution to all industrial facilities while offering the optimum choice in industrial uses.
-
Product Description
-
Technicial Specifications
-
Download Center
With its minimized costs, HBL IP65 offers the economical and optimum LED illumination solution to all industrial facilities while offering the optimum choice in industrial uses.
| Housing | Aluminum injection housing |
| Diffuser | PMMA/PC |
| Optic Angles | 55° / 90° |
| IP Grade | IP65 |
| IK Impact Resistance Class | IK10 |
| Input Voltage | 220-240V AC |
| Power | 91 W / 114 W / 146 W / 162 W / 182 W |
| Light Source | Mid Power LED |
| Color Temperature | 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | >80 |
| Operating Tempareture Range | -30 °C/+65 °C |
| Housing Colors | SW 306G |
| Installation | Surface Mounted / Pendant |
