REVOLED-X SPORT
The meeting of experience and the future in light engineering...
The sealed body of the REVOLED-X SPORT, designed for demanding conditions, fits perfectly into project areas in architectural areas.
-
Product Description
-
Technicial Specifications
-
Download Center

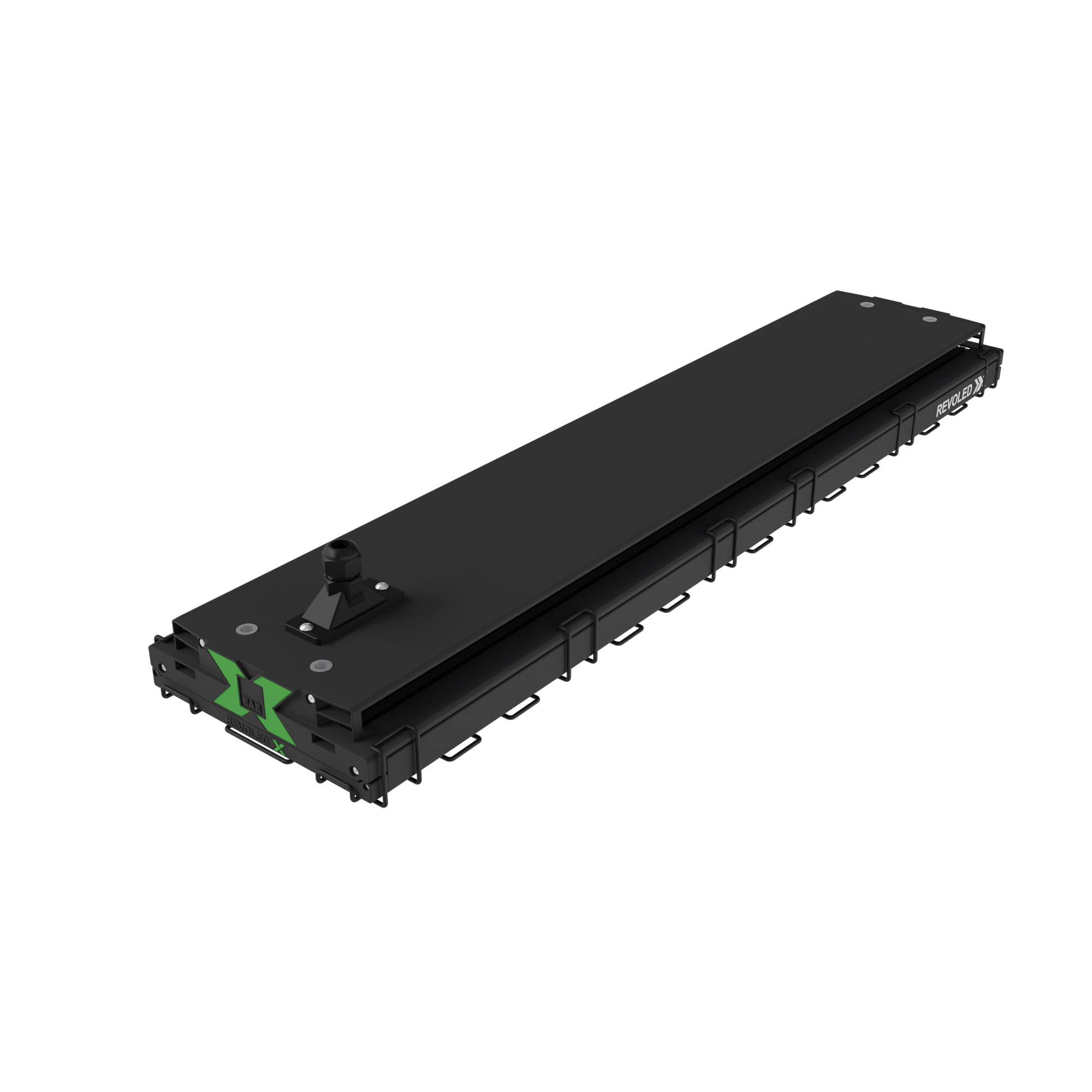

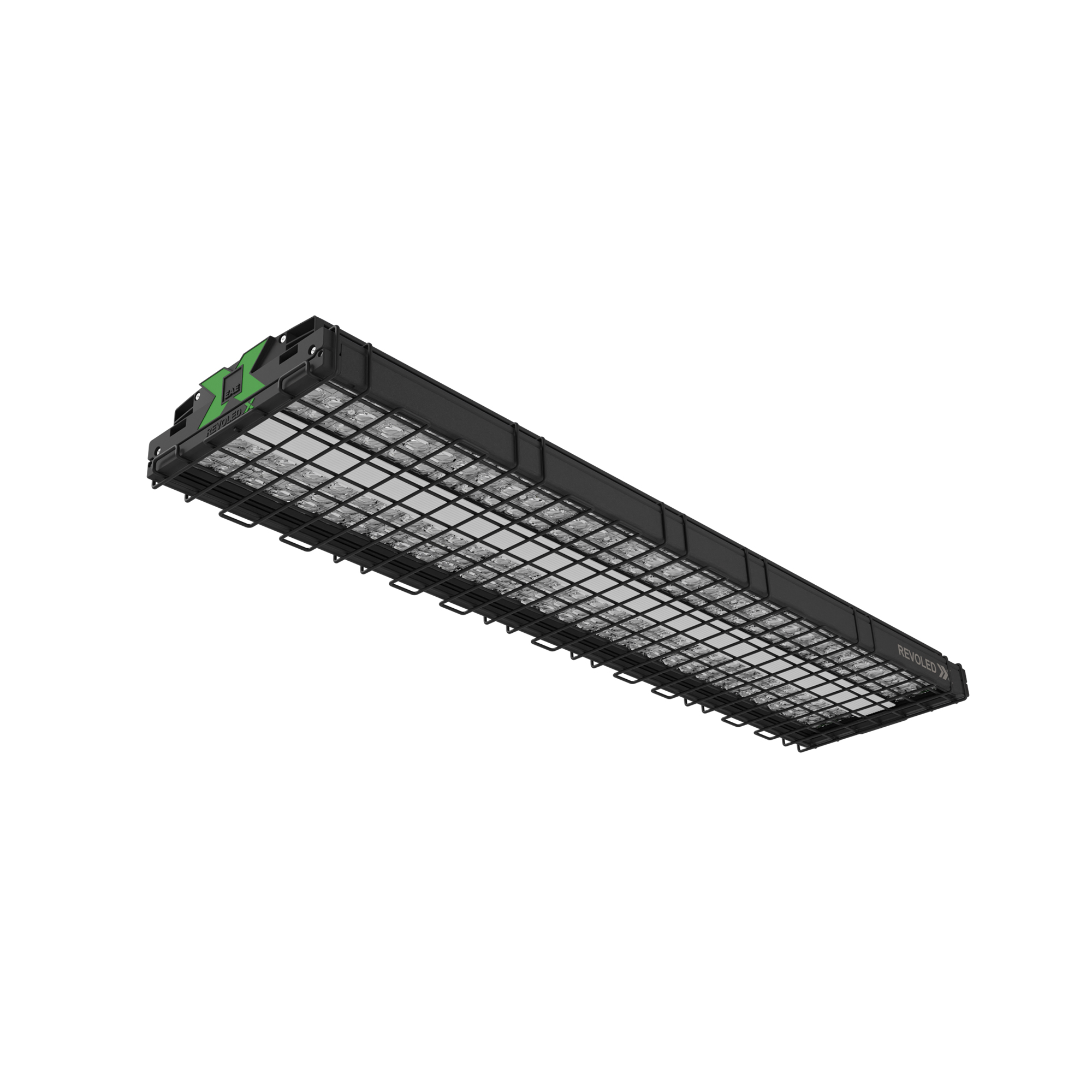

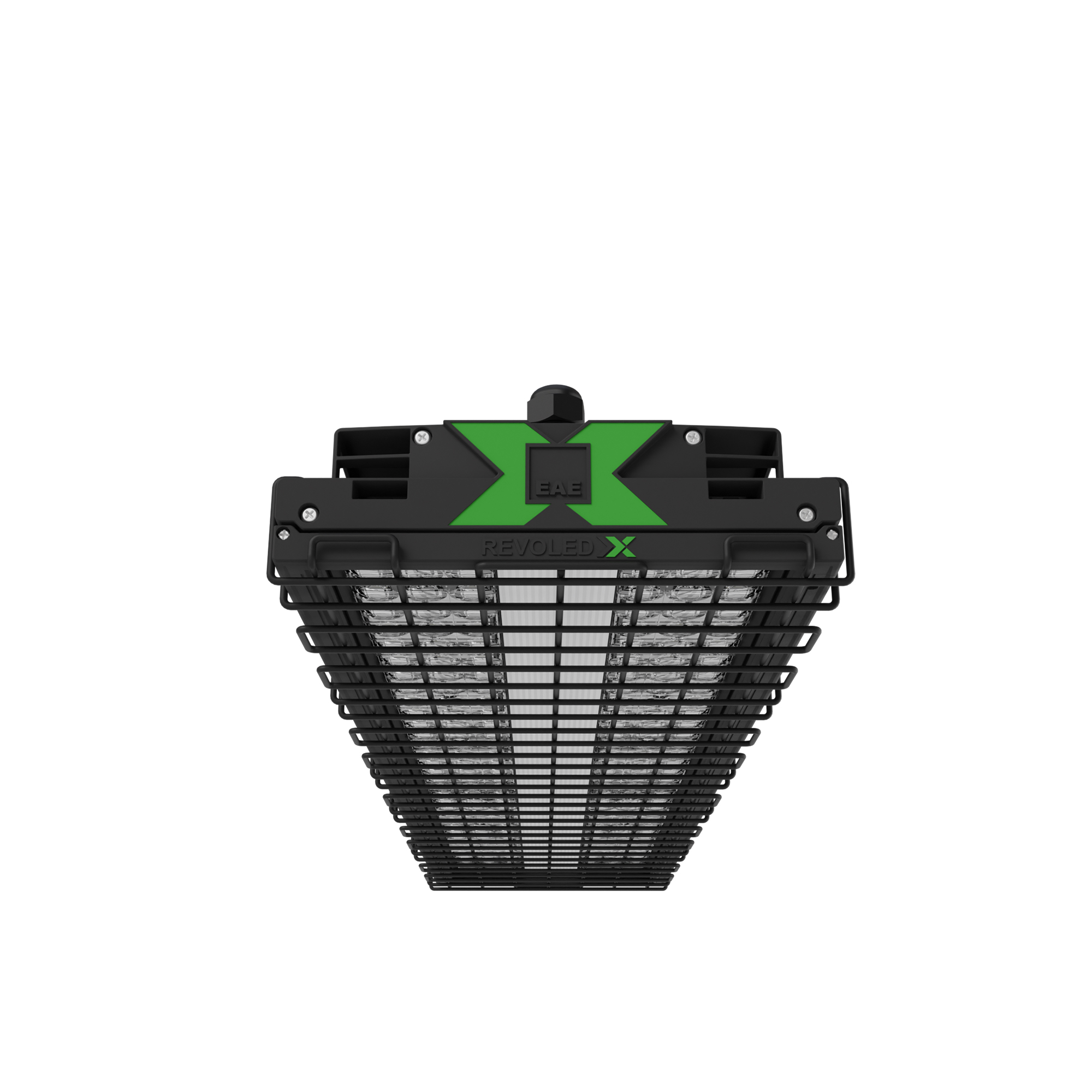

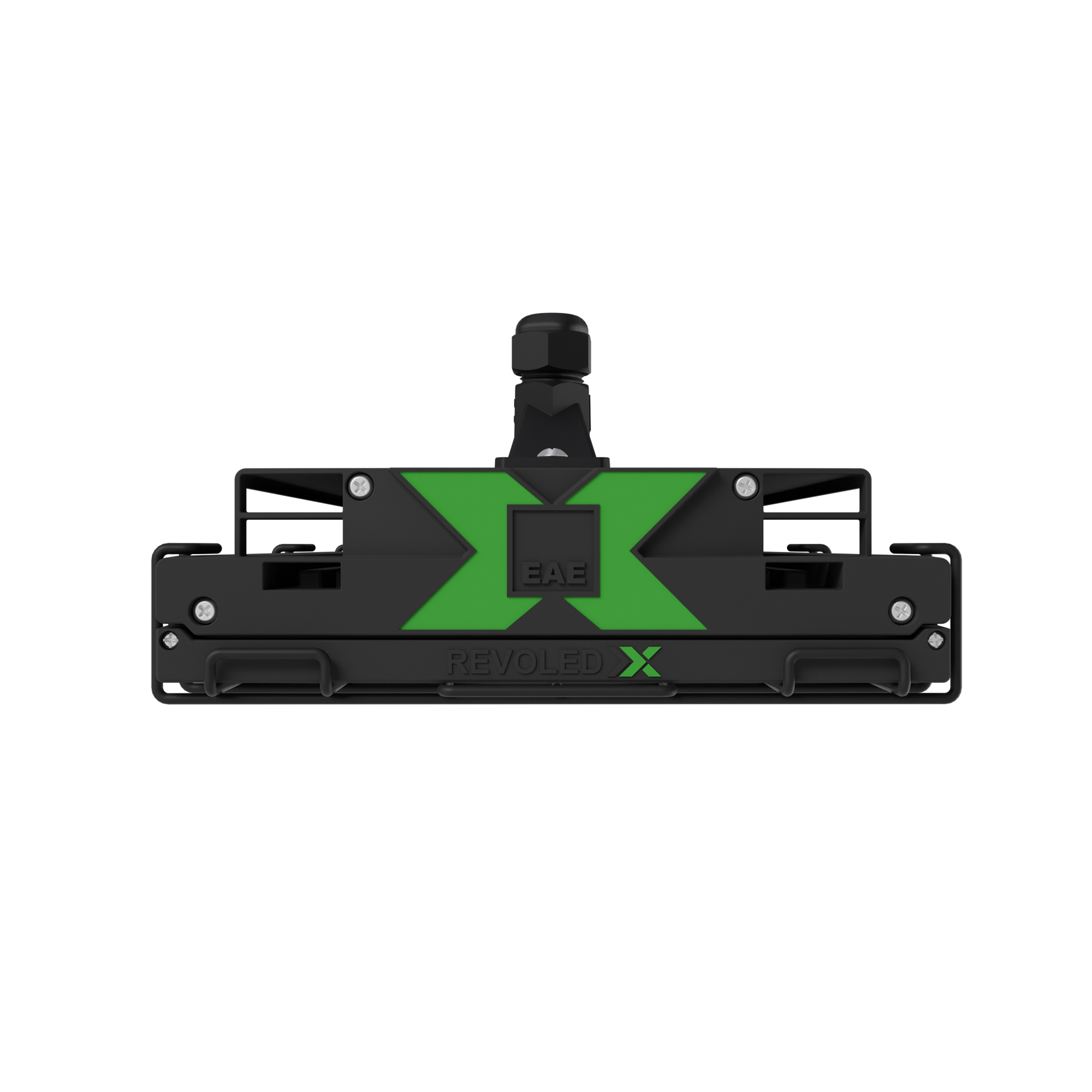

The sealed body of REVOLED-X SPORT designed for demanding conditions, REVOLED-X SPORT fits perfectly into project areas in architectural areas. The specially developed optical options of the ball-proof certified product can be adjusted according to the needs of industrial areas. With its highly efficient LED technology, REVOLED-X SPORT provides the best accurate and efficient light transmission in sports facilities.
| Housing | Aluminum profile body |
| Diffuser | Tempered glass + wire grille with safety film |
| Optical Angles | 30° / 60° / 90° / 30°- 90° / 25°- 105° |
| IP Protection Class | IP66 |
| IK Impact Resistance Class | IK10 |
| Input Voltage | 220-240V AC |
| Power | 28 W / 53 W / 77 W / 103 W / 128 W |
| Light Source | Mid Power LED |
| Color Temperature | 3000K / 4000K / 5000K / 5700K/ 6500K |
| CRI | >80 |
| Operating Tempareture Range | -20°C / +50°C |
| Housing Colors | S 23164 (SMOKED ANTHRACITE) |
| Mounting Type | Surface Mounted |
