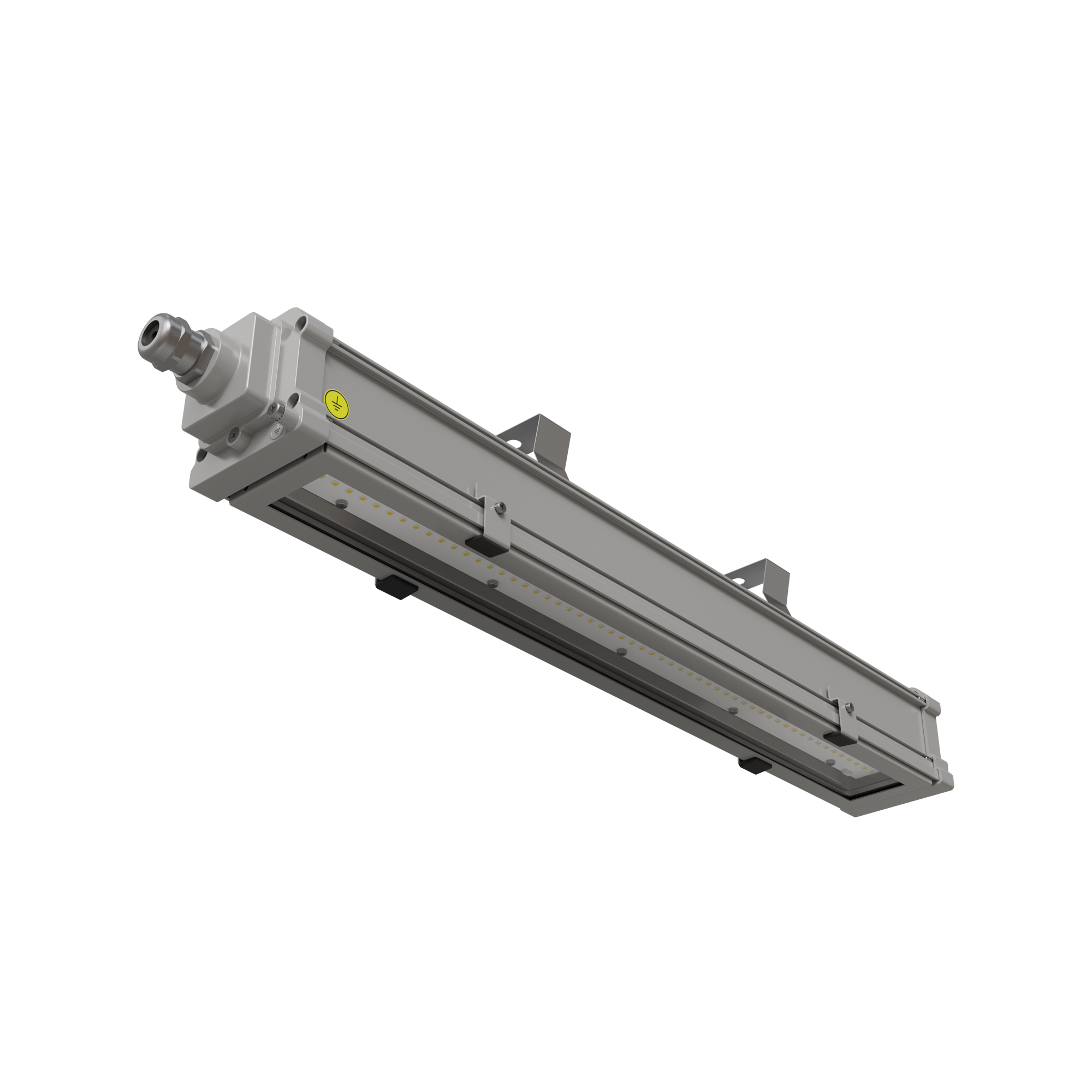

GALIS EXPROOF
Standing out with its advanced mechanical features, GALIS EX-PROOF reliably meets the lighting needs of explosion-sensitive ZONE 2/21 zones. Its aluminum extrusion housing is both environmentally friendly and dissipates heat effectively, allowing professional LEDs to work more efficiently.
-
Product Description
-
Technicial Specifications
-
Download Center
GALIS EX-PROOF, which stands out with its renewed equipment, is the ideal choice for sensitive areas sensitive to combustion and explosion. Its aluminum extruded body effectively dissipates heat, allowing LEDs to work more efficiently.
| Housing | Aluminium extrusion housing |
| Diffuser | Tempered Transparent Glass |
| Optic Angles | - |
| IP Grade | IP66 |
| IK Impact Resistance Class | IK08 |
| Input Voltage | 220-240V AC 50/60 Hz |
| Power | 19 W / 23 W / 28 W / 37 W / 55 W / 70 W |
| Light Source | Mid Power LED |
| Color Temperature | 2700K, 3000K, 4000K, 5000K, 5700K, 6500K |
| CRI | >80 |
| Operating Tempareture Range | -20 °C / +40 °C |
| Housing Colors | RAL 9006 Metallic Grey |
| Installation | Surface mounted |
| Exproof Application Class | - |
| Equipment Category | - |
| Hardware Protection Level | - |
| Explosion Group | - |
| Temperature Class | - |
| Type of Protection | - |
| Mounting Type | - |
